Lasers Map Health of Habitats

Facebook X LinkedIn Email
CHESTNUT HILL, Mass., Feb. 13, 2009 – Restoring habitat for spawning species of fish, such as Atlantic salmon, starts with a geological inventory of suitable rivers and streams, and the watershed systems that support them. But the high-tech mapping tools available to geologists and hydrologists have had their limits.

Now, lasers beamed from planes overhead are adding greater clarity to mapping streams and rivers and interpreting how well these bodies of water can help maintain or expand fish stocks, according to a new study.

“It’s kind of like going from your backyard telescope to the Hubble telescope,” said Boston College geologist Noah P. Snyder. “Restoring fish habitat is just one example. For the fisherman, backpacker, forester, land-use planner or developer – anyone who uses map data – this new technology is the next revolution in mapping.”

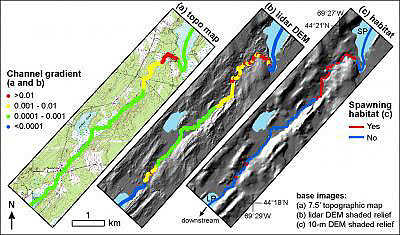

The dynamics of rivers and streams can be more clearly identified using new laser-guided mapping technology, or lidar. This figure shows a segment of Maine’s Sheepscot River in a traditional digital topographic contour map (a); a lidar map (b); and the identification of Atlantic salmon spawning habitat (c). Airborne lidar mapping provides far greater resolution and allows researchers to connect the slope of the river with spawning habitat. Image courtesy of American Geophysical Union.

Airborne laser elevation (lidar) surveys provide a tenfold improvement in the precision with which topographical features are measured, Snyder reports in the current edition of Eos, the weekly journal of the American Geophysical Union.

Lidar represents the latest technology to improve digital topographical maps – known as digital elevation models, or DEMs. Pulsing laser beams released by a lidar device from a plane overhead bounce off rocks, trees, soil, even water, and send signals back to the device, which makes topographical calculations based on the time it takes the laser signal to return at the speed of light.

Hundreds of beams produce a dynamic topographical picture, Snyder said. In the case of streams and rivers, the technology means that channel features such as water surface, bank edges, floodplains, even the slope of a stream, can be measured, he reports in the journal.

In addition, lidar provides new types of data about the vegetation that covers a particular watershed; for example, the height and density of the tree canopy.

“We can look at much finer-scale features in streams using a remote mapping technique, as opposed to field work over the entire lengths of streams,” said Snyder, who is chairman of the steering committee of the National Center for Airborne Laser Mapping. “Digitally, we can now connect topographical features to habitat characteristics or the habitat that needs to be restored.”

That means that geologists and other earth scientists can digitally search large swaths of lidar-mapped territory for a particular feature of interest – lsuch as salmon habitat or particularly steep sections of streams – then narrow down likely candidates for field study.

“I don’t think this will replace field investigations, but it will allow us to better focus our field investigations,” Snyder said.

DEM technology, which digitized topographical maps in the early 1990s, led to breakthroughs in research ranging from the relationship between hillside and stream processes to the response of rivers to climate change. But the technology did reveal some limits, such as difficulty profiling relatively smooth landscapes.

Traditional DEMs offer a resolution that provides one measure of elevation value for every 10 m² of ground. Lidar mapping offers one measure of elevation value for each square meter, reported Snyder, whose research was funded by the National Science Foundation.

The amount of land currently mapped using lidar is gradually expanding. The state of Connecticut is the only state entirely mapped via lidar. Pennsylvania has embarked on a lidar mapping project. Researchers, government agencies and private companies are increasingly using the technology to speed the creation of the next generation of maps, Snyder said.

For more information, visit: www.agu.org


Gentec Electro-Optics Inc   - Measure Your Laser MR

Published: February 2009
