Glitter-sized Solar Cells

Facebook X LinkedIn Email
ALBUQUERQUE, N.M., Dec. 24, 2009 – Scientists at Sandia National Laboratories have developed tiny glitter-size photovoltaic cells that could revolutionize the way solar energy is collected and used.

The solar particles, fabricated of crystalline silicon, hold the potential for a variety of new applications. They are expected eventually to be less expensive and to have greater efficiencies than current photovoltaic collectors that are pieced together with 6-in.² solar wafers.

The cells are fabricated using microelectronic and microelectromechanical systems (MEMS) techniques common to today’s electronic foundries.

Sandia lead investigator Greg Nielson said the research team has identified more than 20 benefits of scale for its microphotovoltaic cells. These include new applications, improved performance, potential for reduced costs and higher efficiencies.

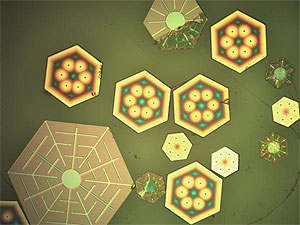

Representative thin crystalline silicon photovoltaic cells are from 14 to 20 µm thick and from 0.25 to 1 mm across. (Image: Murat Okandan)

“Eventually, units could be mass-produced and wrapped around unusual shapes for building-integrated solar, tents and maybe even clothing,” he said. This would make it possible for hunters, hikers or military personnel in the field to recharge batteries for phones, cameras and other electronic devices as they walk or rest.

Even better, such microengineered panels could have circuits imprinted that would help perform other functions customarily left to large-scale construction with its attendant need for field construction design and permits.

“Photovoltaic modules made from these microsize cells for the rooftops of homes and warehouses could have intelligent controls, inverters and even storage built in at the chip level. Such an integrated module could greatly simplify the cumbersome design, bid, permit and grid integration process that our solar technical assistance teams see in the field all the time,” said Sandia field engineer Vipin Gupta.

For large-scale power generation, “One of the biggest scale benefits is a significant reduction in manufacturing and installation costs compared with current PV techniques,” Sandia researcher Murat Okandan said.

Part of the potential cost reduction comes about because microcells require relatively little material to form well-controlled and highly efficient devices.

From 14 to 20 µm thick (a human hair is approximately 70 µm thick), they are 10 times thinner than conventional 6-in.² brick-size cells, yet perform at about the same efficiency.

“So they use 100 times less silicon to generate the same amount of electricity,” Okandan said. “Since they are much smaller and have fewer mechanical deformations for a given environment than the conventional cells, they may also be more reliable over the long term.”

Another manufacturing convenience is that the cells, because they are only hundreds of microns in diameter, can be fabricated from commercial wafers of any size, including today’s 300-mm-diameter (12 in.) wafers and future 450-mm (18 in.) wafers. Furthermore, if one cell proves defective in manufacture, the rest still can be harvested, whereas if a brick-size unit goes bad, the entire wafer may be unusable. Also, brick-size units fabricated larger than the conventional 6-in.² cross section to take advantage of larger wafer size would require thicker power lines to harvest the increased power, creating more cost and possibly shading the wafer. That problem does not exist with the small-cell approach and its individualized wiring.

Other unique features are available because the cells are so small. “The shade tolerance of our units to overhead obstructions is better than conventional PV panels,” said Nielson, “because portions of our units not in shade will keep sending out electricity, where a partially shaded conventional panel may turn off entirely.”

DataRay Inc. - ISO 11146-Compliant

Because flexible substrates can be easily fabricated, high-efficiency PV for ubiquitous solar power becomes more feasible, Okandan said.

A commercial move to microscale PV cells would be a dramatic change from conventional silicon PV modules composed of arrays of 6-in.² wafers. However, by bringing in techniques normally used in MEMS, electronics and the LED industries (for additional work involving gallium arsenide instead of silicon), the change to small cells should be relatively straightforward, Gupta said.

Each cell is formed on silicon wafers, etched and then released inexpensively in hexagonal shapes, with electrical contacts prefabricated on each piece, by borrowing techniques from integrated circuits and MEMS.

Offering a run for their money to conventional large wafers of crystalline silicon, electricity currently can be harvested from the Sandia-created cells with 14.9 percent efficiency. Off-the-shelf commercial modules range from 13 to 20 percent efficient.

A widely used commercial tool called a pick-and-place machine – the current standard for the mass assembly of electronics – can place up to 130,000 pieces of glitter per hour at electrical contact points pre-established on the substrate; the placement takes place at cooler temperatures. The cost is approximately one-tenth of a cent per piece, with the number of cells per module determined by the level of optical concentration and the size of the die, likely to be in the range of 10,000 to 50,000 cells per square meter. An alternate technology, still at the lab-bench stage, involves self-assembly of the parts at even lower costs.

Solar concentrators – low-cost, prefabricated, optically efficient microlens arrays – can be placed directly over each glitter-size cell to increase the number of photons arriving to be converted via the photovoltaic effect into electrons. The small cell size means that cheaper and more efficient short-focal-length microlens arrays can be fabricated for this purpose.

High-voltage output is possible directly from the modules because of the large number of cells in the array. This should reduce costs associated with wiring because of reduced resistive losses at higher voltages.

Other possible applications for the technology include satellites and remote sensing.

The project combines expertise from Sandia’s Microsystems Center; Photovoltaics and Grid Integration Group; the Materials, Devices and Energy Technologies Group; and the National Renewable Energy Lab’s Concentrating Photovoltaics Group.

Involved in the process, besides Nielson, Okandan and Gupta, are Jose Luis Cruz-Campa, Paul Resnick, Tammy Pluym, Peggy Clews, Carlos Sanchez, Bill Sweatt, Tony Lentine, Anton Filatov, Mike Sinclair, Mark Overberg, Jeff Nelson, Jennifer Granata, Craig Carmignani, Rick Kemp, Connie Stewart, Jonathan Wierer, George Wang, Jerry Simmons, Jason Strauch, Judith Lavin and Mark Wanlass (NREL).

The work is supported by the US Department of Energy’s Solar Energy Technology and Sandia’s Laboratory Directed Research & Development programs and has been presented at four technical conferences this year.

Sandia National Laboratories is a multiprogram laboratory operated by Sandia Corp., an autonomous Lockheed Martin company, for the DoE’s National Nuclear Security Administration. With main facilities in Albuquerque and in Livermore, Calif., Sandia has major R&D responsibilities in national security, energy and environmental technologies, and in economic competitiveness.

For more information, visit: www.sandia.gov

Published: December 2009
