Glowing nanopillars light up cells

Facebook Twitter LinkedIn Email
Compiled by Photonics Spectra staff

A novel cellular research platform uses nanopillars that glow in such a way as to allow a deeper and more precise look into living cells.

A Stanford University team led by chemist Bianxiao Cui developed the precise system of illumination.

Earlier forms of molecular imaging shined light directly on the subject area rather than using backlighting, as is used in this approach. With the earlier methods, the focal area was physically limited; the minimum observation volume was subject to the diffraction limit, whereas individual molecules are much smaller than visible light’s typical limit of about 400 nm.

To overcome these hurdles, the team used quartz nanopillars that glow just enough to provide light to see by, but are weak enough to punch below the 400-nm barrier. The field of light that surrounds the glowing nanopillars, known as the “evanescence wave,” dies out within about 150 nm of the pillar, thus acting as a light source smaller than the diffraction limit. Cui estimates that they have shrunk the observation volume to one-tenth the size achieved by previous methods.

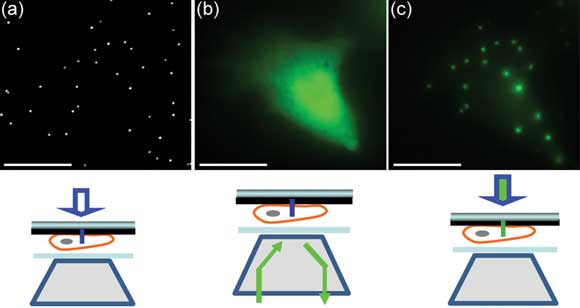

Fluorescence imaging using nanopillar illumination in live cells. (a) White-light imaging reveals the locations of nanopillars. (b) Fluorescence imaging by epi-illumination shows the shape of a cell transfected with green fluorescent protein. (c) Nanopillar illumination excites only those fluorescence molecules that are very close to nanopillars inside the cell, giving rise to fluorescence spots perfectly colocalized with the nanopillars. Courtesy of Stanford University.

The technique does not harm cells under observation – a drawback of some earlier technologies. For example, living neurons can be cultured on the platform and observed over long periods of time. In addition, the nanopillars essentially pin the cells in place, which is promising for the study of neurons in particular because they tend to move as a result of the repeated firing and relaxation necessary for study.

The scientists also discovered that by modifying the chemistry on the surface of the nanopillars, they could attract specific molecules they wanted to observe. This enabled them to handpick molecules to study, even within the crowded and complex environment of a human cell.

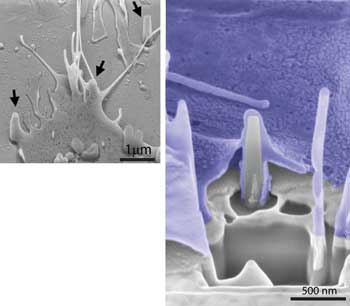

(Left) A scanning electron microscope image of a cell grown over and interacting with nanopillars. Arrows indicate three nanopillars. (Right) Image of the interface of cell (purple) and nanopillar shows cell membranes wrapped around the pillar. (Image: Bianxiao Cui, Stanford University)

“We know that proteins and their antibodies attract each other,” Cui said. “We coat the pillars with antibodies, and the proteins we want to look at are drawn right to the light source – like prima donnas to the limelight.”

To create the nanopillars, the researchers used a sheet of quartz, which they sprayed with fine dots of gold in a random pattern. Using a corrosive gas, they etched the quartz. The gold dots shielded the quartz directly below from the etching process, leaving behind tall, thin pillars of quartz. The nanopillars’ height can be controlled by adjusting the amount of time the etching gas is in contact with the quartz; their diameter, by varying the size of the gold dots. After the etching process was completed, a layer of platinum was added to the flat expanse of the quartz at the base of the pillars.

The scientists then shined a light from below their creation. The opaque platinum blocked most of the light, while a small amount traveled up through the nanopillars, which glowed against the dark field of platinum and looked much like a forest of tiny light sabers.

The team has created a platform for culturing and observing human cells. The platinum is biologically inert, and the cells grow over and closely adhere to the nanopillars. The glowing spires then meet with fluorescent molecules within the living cell, causing the molecules to glow – providing the researchers just the amount of light they need to peer inside the cells.

The work appeared in the Feb. 22, 2011, issue of PNAS (doi: 10.1073/pnas.1015589108).
