QCL, THz Frequency Combs May Become the Future of Wi-Fi

Facebook X LinkedIn Email
AUTUM C. PYLANT, NEWS EDITOR, [email protected]

                   Watch the video as professor Federico Capasso explains his group's discovery.
Wi-Fi and cellular data traffic are increasing exponentially, but unless the capacity of wireless links can be increased, all that traffic is bound to lead to bottlenecks. Upcoming 5G networks are a temporary fix.

Researchers are focusing on terahertz frequencies — the submillimeter wavelengths of the electromagnetic spectrum — for the long-term fix. Data traveling at terahertz frequencies could move hundreds of times faster than today’s wireless.

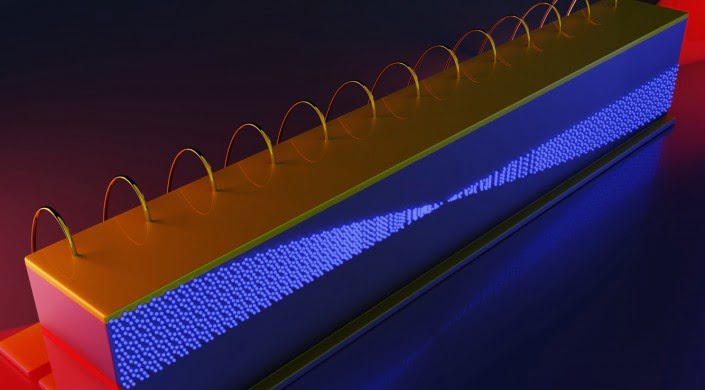

Inside an infrared frequency comb in a quantum cascade laser, the different frequencies of light beat together to generate microwave radiation.
Inside an infrared frequency comb in a quantum cascade laser, the different frequencies of light beat together to generate microwave radiation. Courtesy of Jared Sisler/Harvard University.

Researchers at Harvard’s John A. Paulson School of Engineering and Applied Sciences (SEAS) have discovered that an infrared frequency comb in a quantum cascade laser could offer a new way to generate terahertz frequencies. They also uncovered a new phenomenon of quantum cascade laser (QCL) frequency combs, which would allow the devices to act as integrated transmitters or receivers that can efficiently encode information.

“This work represents a complete paradigm shift for the way a laser can be operated,” said Federico Capasso, the Robert L. Wallace Professor of Applied Physics and Vinton Hayes Senior Research Fellow in Electrical Engineering and senior author of the paper. “This new phenomenon transforms a laser — a device operating at optical frequencies — into an advanced modulator at microwave frequencies, which has a technological significance for efficient use of bandwidth in communication systems.”

Frequency combs are widely used, high-precision tools for measuring and detecting different frequencies of light. Unlike conventional lasers, which emit a single frequency, frequency combs emit multiple frequencies simultaneously, evenly spaced to resemble the teeth of a comb. Optical frequency combs are used for everything from measuring the fingerprints of specific molecules to detecting distant exoplanets.

The SEAS research represents a complete paradigm shift for the way a laser can be operated. However, the researchers weren’t interested in the optical output of the laser.

“We were interested in what was going on inside the laser, in the laser’s electron skeleton,” said Marco Piccardo, a postdoctoral fellow at SEAS and first author of the paper. “We showed, for the first time, that a laser at optical wavelengths can operate as a microwave device.”

Inside the laser, the different frequencies of light beat together to generate microwave radiation. The researchers discovered that light inside the cavity of the laser causes electrons to oscillate at microwave frequencies — which are within the communications spectrum. These oscillations can be externally modulated to encode information onto a carrier signal.

Capasso told Photonics Media that QCLs, if operated carefully, are naturally frequency combs.

“We call them harmonic combs,” Capasso said. “Instead of the modes being very close, they are very far apart. They are tunable, and that opens up an entirely new perspective.”

“This functionality has never been demonstrated in a laser before,” Piccardo said. “We have shown that the laser can act as a so-called quadrature modulator, allowing two different pieces of information to be sent simultaneously through a single frequency channel and successively be retrieved at the other end of a communication link.”

The Harvard Office of Technology Development has protected the intellectual property relating to this project and is exploring commercialization opportunities.

“Currently, terahertz sources have serious limitations due to limited bandwidth,” Capasso said. “This discovery opens up an entirely new aspect of frequency combs and could lead, in the near future, to a terahertz source for wireless communications.”

The research has been published in Optica (

Published: August 2018
quantum cascade laser
A Quantum Cascade Laser (QCL) is a type of semiconductor laser that emits light in the mid- to far-infrared portion of the electromagnetic spectrum. Quantum cascade lasers offer many benefits: They are tunable across the mid-infrared spectrum from 5.5 to 11.0 µm (900 cm-1 to 1800 cm-1); provide a rapid response time; and provide spectral brightness that is significantly brighter than even a synchrotron source. Quantum cascade lasers comprise alternating layers of semiconductor...
