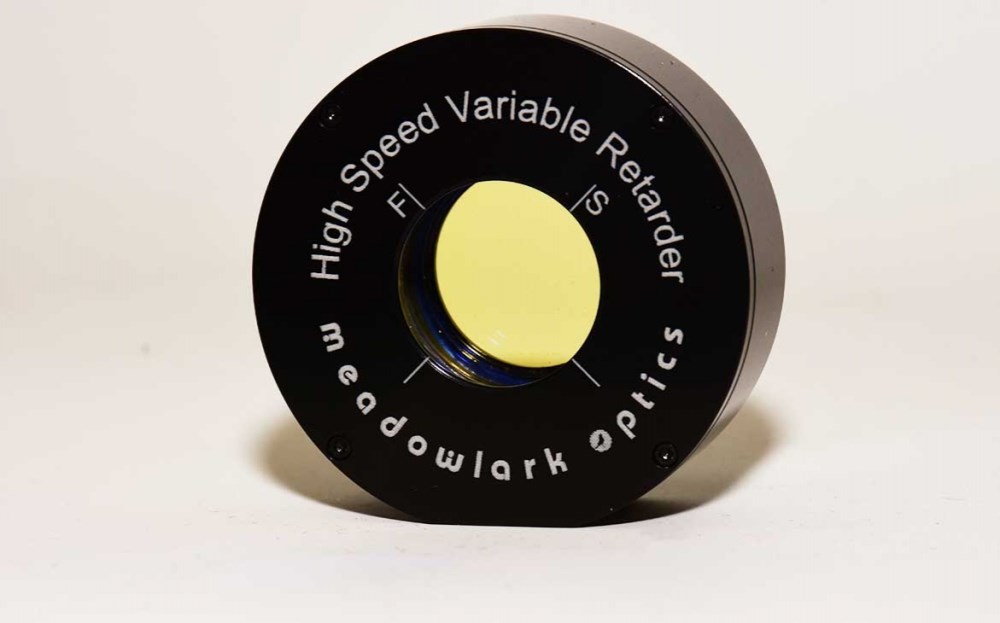

High Speed Liquid Crystal Variable Retarder

  • Company: Meadowlark Optics Inc.
  • Type: Other
  • Diameter / Dimension: 50.8mm - 76.2mm
  • Applications: Astronomy, Biomedical/Medical, Communications, Industrial, Military, Scientific Research, Other
  • Wavelength Range: 400 - 700 nm
  • Typical LC Rise Time: 50 µs @ 532 nm (10 - 90%)
  • Typical LC Fall Time: 500 µs @ 532 nm (90 - 10%)
  • Retardance: 0 to λ/2
  • Wavefront Distortion: ≤ λ /4 @ 632.8 nm
  • Beam Deviation: ≤ 2 arc min

Meadowlark’s newest liquid crystal (LC) product, the high-speed LC variable retarder (HS LCVR) has a 4X speed improvement over our award-winning standard LCVR. The sub millisecond speeds are achieved without the 50/50 duty cycle drive scheme required by our ferroelectric liquid crystal components, but are nearly as fast. The new LCVR uses nematic liquid crystal materials to electrically control polarization and provide tunable retardation by changing the effective birefringence of the material with applied voltage, thus altering the input polarized light to any chosen elliptical, linear or circular polarization.

Our precision HS LCVR requires unique fabrication and assembly steps. We construct these retarders using optically flat fused silica windows coated with our transparent conductive Indium Tin Oxide (ITO). Our ITO coating is specially designed for maximum transmission from 400 - 700 nm.
High Speed Liquid Crystal Variable Retarder

Meadowlark Optics Inc.
5964 Iris Pkwy.
Frederick, CO 80504
United States
Phone: +1 303-833-4333
