LC / LSC Extended Wavelength Linear PDA

  • Company: Sensors Unlimited Inc.
  • Type: InGaAs
  • Max. Resolution: 1024MP
  • Sensor Width: 25
  • Sensor Height: 25
  • Scan Type & Rate: Linear
  • kHz at Max. Res.: 91
  • Light Spectrum: SWIR

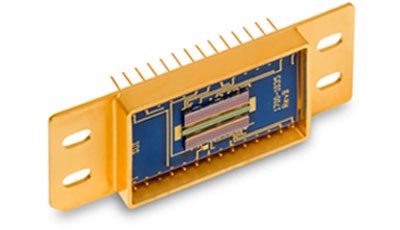

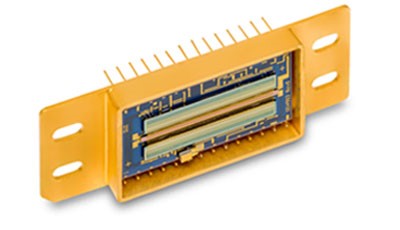

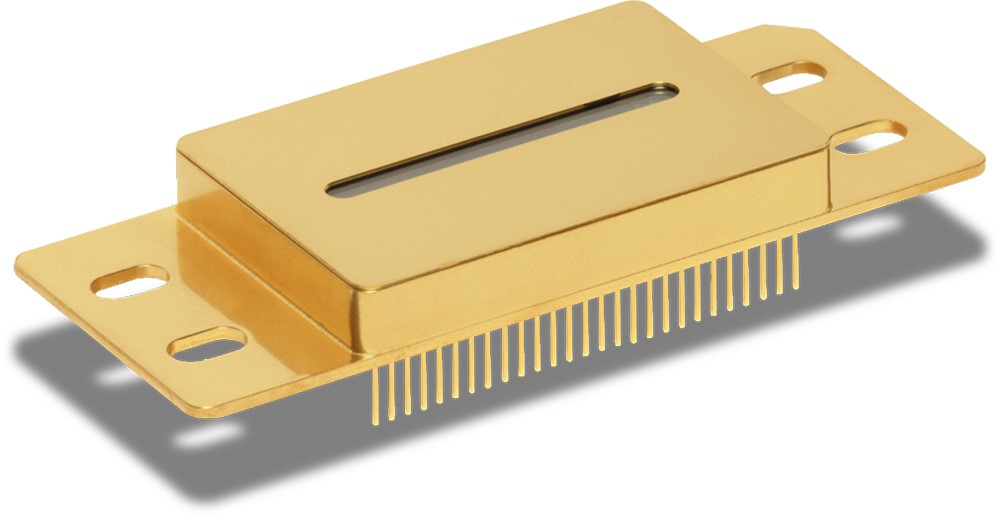

The LC/LSC series InGaAs linear arrays are available with 256, 512 and 1024 elements on a 25µm or 50µm pixel pitch with pixel heights of 25, 250 and 500 µm. Standard wavelength range of 0.8 to 1.7 μm, a shorter range of 0.8 to 1.45 μm or extended wavelength range of 1.1 to 2.2 μm and 1.1 to 2.6 μm.
LC / LSC Extended Wavelength Linear PDA

Sensors Unlimited Inc.
330 Carter Rd.
Princeton, NJ 08540
United States
Phone: +1 609-333-8000
Fax: +1 609-333-8103
