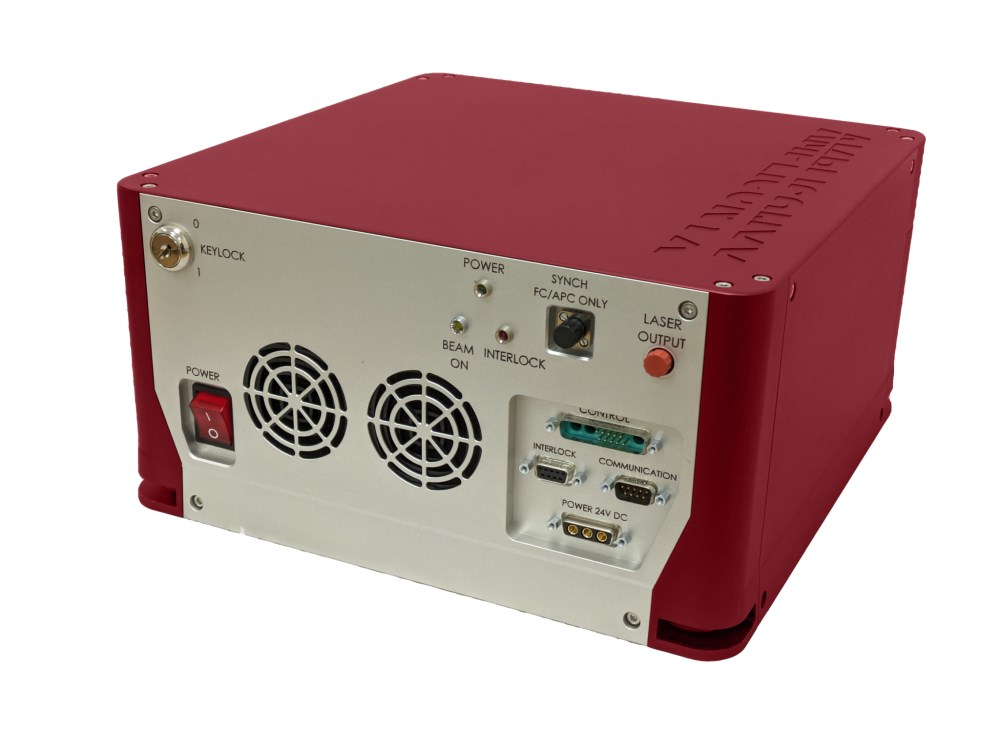

Picosecond Fiber Laser AMPX-PW-LP-IR

  • Company: Ampliconyx Oy
  • Type: Fiber
  • Max. Power: 150mW
  • Classification (IEC): Class 3B
  • Wavelength: 1030nm - 1064nm
  • Operating Mode: Pulsed
  • Max. Pulse Rate: 20MHz
  • Max. Pulse Energy: 10nJ
  • Pulse Length: 60ps
  • TEM: 00
  • Active Laser Medium: Ytterbium
  • Applications: Biomedical/Medical, Industrial, Machining, Metrology, Remote Sensing, Scientific Research, Spectroscopy
  • Pulsewidth: 60 or 20 ps
  • Spectral bandwidth @ 3 dB: ≤ 100 pm
  • Polarisation type: Linear
  • PER: ≥ 15 dB
  • Output fiber: PM980/PM1060L
  • External triger: SMA Jack

Pulsed seed laser for applications in science, sensing, frequency doubling, fiber laser seeding
Picosecond Fiber Laser AMPX-PW-LP-IR

Ampliconyx Oy
Lautakatonkatu 18
33580 Tampere
Phone: +358 40 7054772
