- Company: iX Cameras Inc.
- Type: CMOS
- Max. Resolution: 13GP
- Sensor Width (pixels): 1920
- Sensor Height (pixels): 1080
- Scan Type & Rate: Area Scan
- Interface: Other
- Color/Mono.: Both
- Spectral Range: VIS
- Applications: Biomedical/Medical, Communications, Industrial, Information Processing, Military, Scientific Research
- Maximum Frame Rate: 1 million fps
- Memory: 18 GB (std) / 36 GB / 72 GB / 96 GB / 144GB
- Throughput: 13 GP/S
- Light Sensitivity Mono (Gain off/on): 16,000 / 125,000
- Light Sensitivity Color (Gain off/on): 4,000 / 32,000
- Pixel size: 13.5 µm

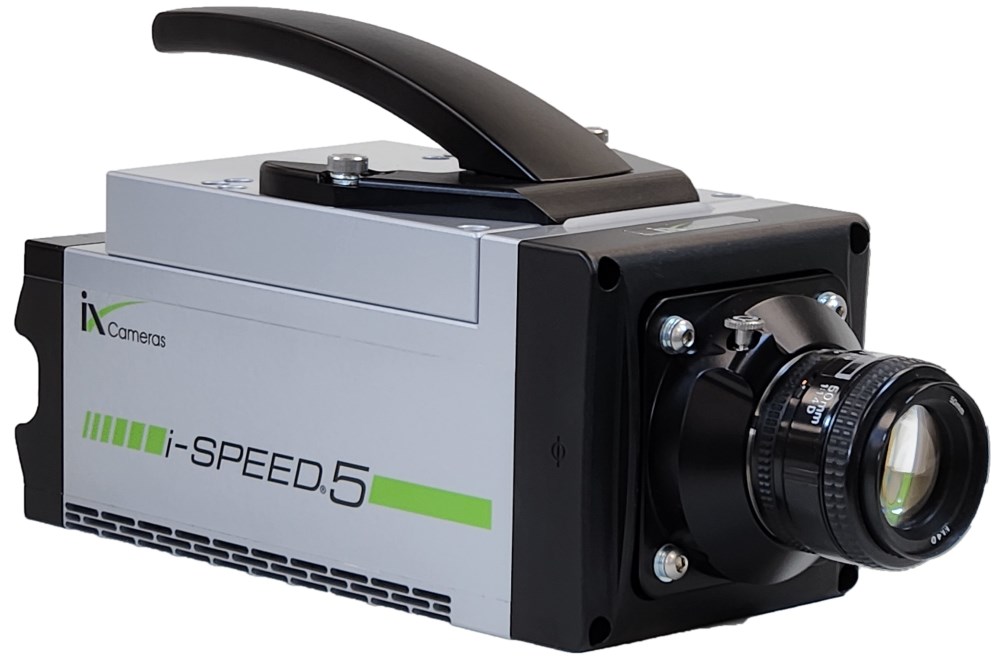

The i-SPEED 5 Series high-speed cameras represent the latest advancement in high-performance, feature-rich camera technology. The three models offer class-leading features that elevate their performance across various industries and applications, making the cameras ideal for applications such as PIV, DIC, fluid dynamics, ballistics, and a range of other scientific and engineering applications.
