Trioptics GmbH - ATS-C LB

20/20C-HS Power Amplifier

TREK Inc.Request Info
Facebook Twitter LinkedIn Email

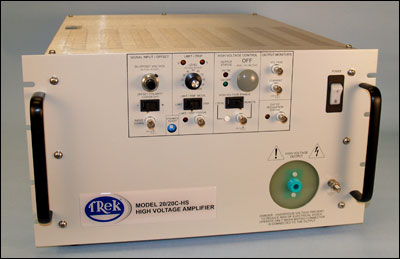

LOCKPORT, N.Y., Aug. 5, 2013 — Trek Inc.’s high-voltage amplifier, model 20/20C-HS, provides high-speed response with a slew rate >800 V/μs, output current to ±60-mA peak AC, and large-signal bandwidth of DC to >5.2 kHz (1% distortion).

The ±20-kV four-quadrant DC-stable device will enable technological advancement in industries including aerospace, automotive, biotechnology, defense, electronics, energy, instrumentation, laboratory, medical, military, power, semiconductor and telecommunications.

Applications for the CE-compliant device include use in particle accelerators, plasma research and dielectric applications, AC or DC biasing, delta tan testing, dielectric barrier discharge, electrocoalescence, electro-optic modulation, electrospinning, electrostatic deflection, fusion research, insulation breakdown testing, ion beam steering, materials characterization (ferroelectrics) and materials poling.

The amplifier will be introduced at the 2013 North American Particle Accelerator Conference (NA-PAC’13) in September.
Aug 2013
