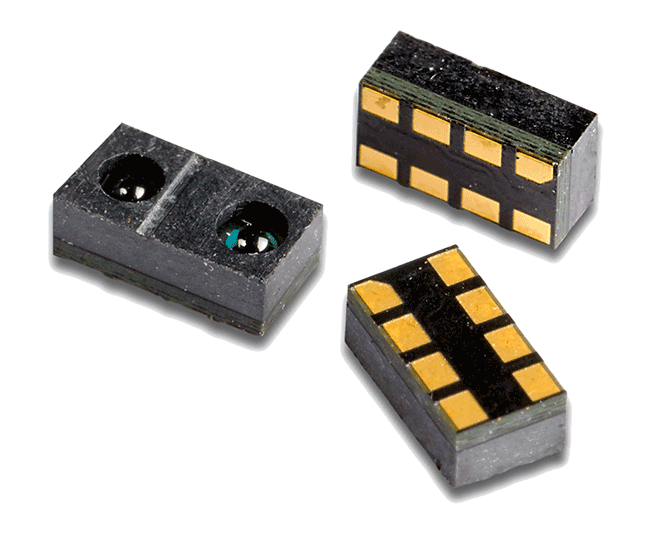

Reflective Optical SensorThe Photologic V OPB9000 reflective optical sensor from TT Electronics PLC provides dependable edge and presence detection of reflective media under a wide range of ambient light conditions.

The reflective, CMOS logic output sensor features programmable sensitivity, output polarity and drain select, providing 25-kilolux ambient light immunity along with a wide operating temperature range. A self-calibration feature avoids the need for constant recalibration as the LED ages, saving time and effort. Temperature compensation and automatic gain control features enable it to reliably function in demanding and dynamic environmental conditions.

A response time of 6 µs ensures high-speed detection for time-critical applications.

Published: February 2017
