Wavelength Stabilized Laser Diode

PhotonTec Berlin GmbHRequest Info

Facebook Twitter LinkedIn Email

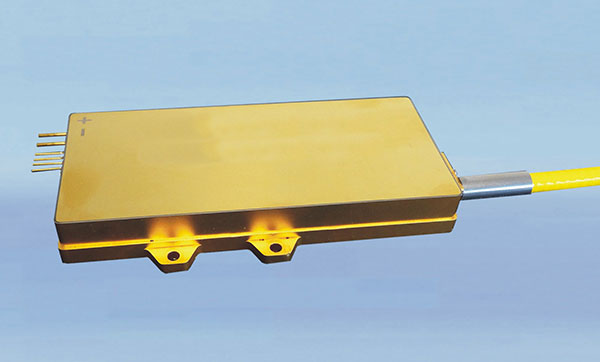

Wavelength Stabilized Laser Diode PhotonTec Berlin expands its wavelength stabilized diode family with a new high-brightness 976 nm diode of 140 W power from a 105 µm core and 0.22NA fiber pigtail. Utilizing volume grating, the emitting wavelength is stabilized at 976 nm and insensitive to operating temperature and current. The diode module comes with a hermetically sealed 6-pins package measuring 120 mm x 66 mm. Thermistor and monitoring photodiode are integrated. The module is rigorously tested and validated to ensure long term reliability and long life. It is an ideal pumping source for high power fiber laser. Currently diodes at 808 nm, 880 nm, 976 nm, and 981 nm are available for wavelength stabilization.


REQUEST INFO ABOUT THIS PRODUCT

* Message:
(requirements, questions for supplier)
Your contact information
* First Name:
* Last Name:
* Email Address:
* Company:
Address:
Address 2:
City:
State/Province:
Postal Code:
* Country:
Phone #:
Fax #:

Register or login to auto-populate this form:
Login Register
* Required

When you click "Send Request", we will record and send your personal contact information to PhotonTec Berlin GmbH by email so they may respond directly. You also agree that Photonics Media may contact you with information related to this inquiry, and that you have read and accept our Privacy Policy and Terms and Conditions of Use.
lasersProductsdiodewavelengthstabilizedfibercoupled976 nm880 nm808 nm
