Optical Fiber Amplifier TGModule C

  • Company: Ampliconyx Oy
  • Type: Pigtail Package
  • Gain (dB): 50
  • Wavelength: 1030nm - 1070nm
  • Wavelength - Tunable?: Yes
  • Applications: Biomedical/Medical, Industrial, Remote Sensing, Scientific Research
  • Single mode output: M2 ≤ 1.3
  • Mode field diameter: 50 µm
  • Input signal fiber: upon request (PM,SM)
  • Pump fiber: 105/125 µm NA=0.22
  • Cooling: Water in/outlets
  • Seed signal power: ≥ 5 mW

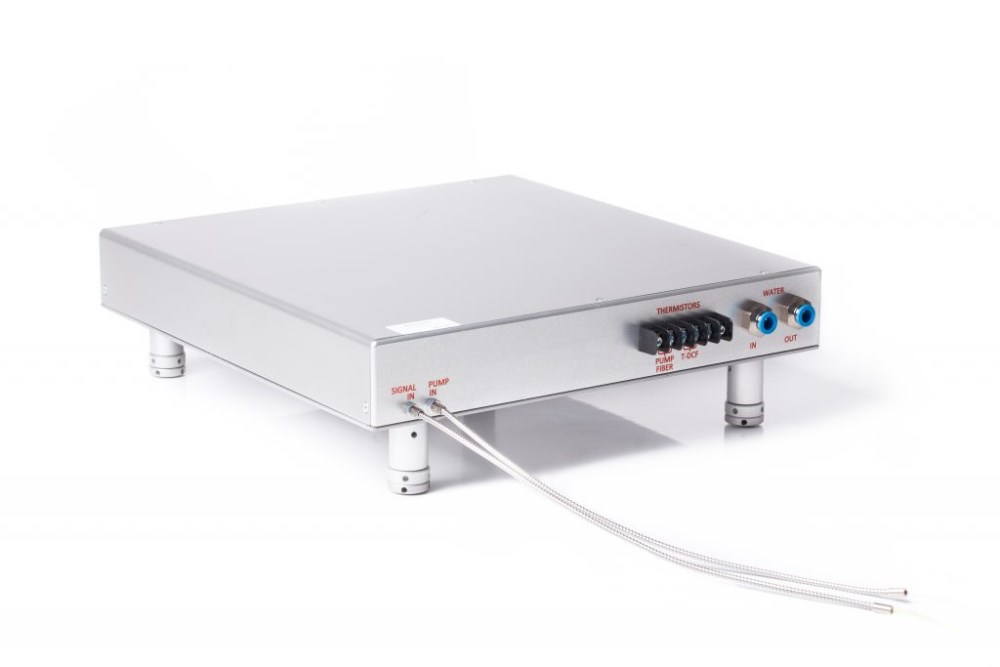

TGModule is an amplifying module containing the needed optical components packaged inside housing. It is based on LMA PM tapered fiber. The module housing is directly water cooled for high power applications. This module is ideal for customers who want to have fully assembled, ready-to-splice gain unit, but prefer to use their own pump diodes or integrate the module inside a larger system.
